Welcome To Fittings 101
An overveiw of common hydraulic fitting ends.
The red lines represent the sealing area.
On some of the drawings you may notice a green line.
This represents where 1/4 of the fitting was cut away to display the
cross section view.
For explanation of cross section Click Here
Click on pictures below for sizing information.

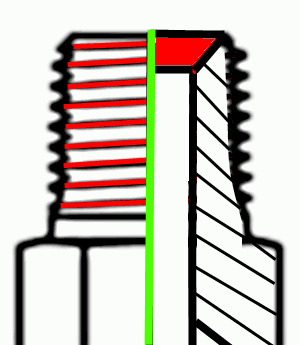

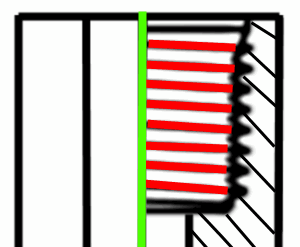

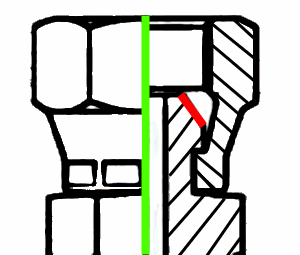

Male Pipe Female Pipe Female Pipe Swivel
Mates
With
Or


Represents the sealing area.
Represents where the fitting was cut to display the cross section view.

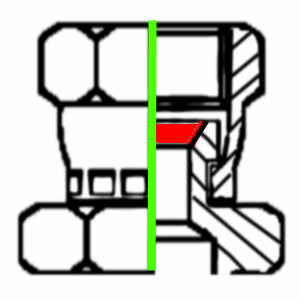

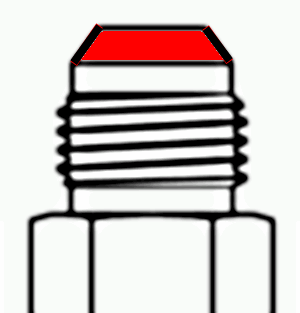

Male JIC Female JIC Swivel
Mates
With


Represents the sealing area.
Represents where the fitting was cut to display the cross section view.

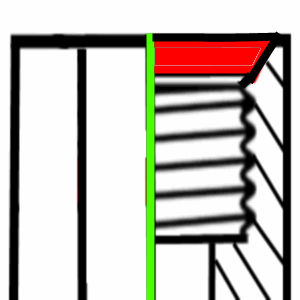

Male O-Ring Female O-Ring
Mates
With


Represents the sealing area.
Represents where the fitting was cut to display the cross section view.

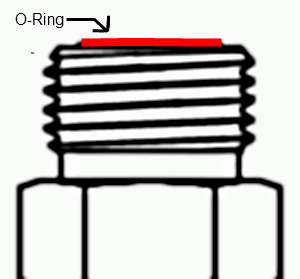

Male Flat Face
O-Ring

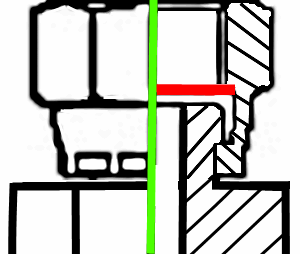

Female Flat Face
O-Ring
Mates
With


Represents the sealing area.
Represents where the fitting was cut to display the cross section view.
